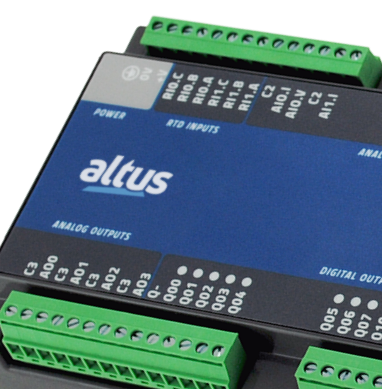

ALTUS NEXTO XPRESS XP315

XP315 Main Features:

Number of digital inputs (DI): 16
Number of digital outputs (DO): 16
Number of analog inputs – V/I (AI): 5
Number of analog inputs – RTD (AI): 2
Number of analog outputs (AO): --
Ethernet TCP/IP interface: 1
RS-485 serial interface: 1
CAN Interface: 1
USB (Memory, 3G/4G, WiFi or RS-232): 1
Webserver and IEC 104 Protocol: --

General Features:

 DIN rail mount
 Compact design
 24 Vdc power supply input
 High-speed 32-bit ARM-based processor
 High density of I/O (up to 43 I/O points in a single product)
 Multi-purpose analog inputs (voltage, current, and RTD)
 LEDs for inputs/outputs state indication and diagnostics
 Extractable terminal blocks
 Real-time clock (RTC)
 MSSQL_CLIENT functional block support for Microsoft databases access

Communication Capabilities:

ETHERNET
      -MODBUS TCP Client/Server
      -OPC DA/OPC UA
      -MQTT (TLS 1.2)
     - EtherNet/IP Scanner
      -SNTP
     - IEC 60870-5-104 (XP340)
     - Webserver (XP340)
      -Programming and configuration
RS-485
      -MODBUS RTU Master/Slave
CAN
      -CANopen Master
     - CAN low level (proprietary protocols dev.)
      -I/O Expansion (between Xpress models)
USB
      -Datalogger (external memory)
      -RS-232 adapter
      -WiFi adapter
      -3G/4G modem Programming and configuration


UL AND cUL CERTIFICATION
RoHS DIRECTIVE AND CE MARKING
